Analysis of contact zone of coating-substrate system exposed to irradiation with a pulse electron beam

Introduction

Over the past two decades, there has been a notable surge in scientific interest regarding the development and investigation of high-entropy alloys (HEAs) owing to their distinctive microstructure, composite composition, and exceptional mechanical and functional properties [1; 2]. The pioneering materials in this category were alloys within the Al – Co – Cr – Fe – Ni systems and the Cantor alloy Mn – Co – Cr – Fe – Ni [3; 4]. HEAs, beyond possessing characteristics typical of conventional metal alloys, exhibit unique and unconventional properties reminiscent of metal-ceramics. These include high hardness and resistance to temperature hardening, dispersion hardening, a positive temperature hardening coefficient, elevated temperature strength, high wear and corrosion resistance, among other attributes [5 – 8].

Various reviews [8 – 11] have comprehensively analyzed the structural-phase states, properties, simulation, production methods, and application areas of the most promising HEAs. It has been emphasized that the advent of HEAs represents a significant leap forward in the advancement of metal alloys.

Currently, there is a wealth of information being actively accumulated on high-entropy alloys (HEAs), encompassing structural-phase states, defect substructure, stability, deformation behavior over a broad temperature range, the impact of doping and other factors, as well as novel methods for HEA production [12 – 17]. In the realm of HEA physics, there is a distinct focus on enhancing surface properties through various treatments, including irradiation with low-energy high-current electron beams. Electron-beam processing offers ultrahigh surface heating rates (up to 108 K/s) and subsequent cooling through heat-water transfer to the material’s bulk. This leads to the formation of nonequilibrium submicro- and nanocrystalline structural-phase states, the development of a columnar structure, and the homogenization of chemical composition [18].

The primary objective of the current study is to analyze the structural-phase states within the contact zone of the HEA layer (coating) formed by wire-arc additive manufacturing on alloy 5083 (substrate) and subjected to electron-beam treatment.

Materials and methods

The material under investigation in this study comprised a coating – substrate system. The coating was a high-entropy alloy with the elemental composition Mn – Cr – Fe – Co – Ni, fabricated onto the substrate using wire-arc additive manufacturing [1; 2]. The substrate material employed was alloy 5083. The contact zone of the coating–substrate system underwent irradiation with an intense pulsed electron beam using the SOLO installation. The process parameters for the irradiation were as follows: accelerated electrons’ energy U = 18 keV, electron beam energy density E_S = 30 J/cm², electron beam pulse duration t = 200 μs, number of pulses N = 3, and pulse repetition rate f = 0.3 s\(^–\)¹. The irradiation took place in a vacuum at a residual gas pressure (argon) in the installation chamber of p = 0.02 Pa. To investigate the structural phase states of the contact zone between the coating and the substrate, scanning electron microscopy (SEM 515 Philips with EDAX ECON IV X-ray spectral microanalyzer) and transmission diffraction electron microscopy (JEM-2100) were employed [19 – 21]. Foils for the transmission electron microscope were prepared through ion thinning (Ion Slicer EM-091001S, utilizing argon ions) of plates obtained from bulk samples using an Isomet Low Speed Saw unit. The cutting was performed perpendicular to the surface of the HEA deposited layer, extending from the interface between the substrate and the deposit. This method facilitated the observation of structural and phase composition changes in the material with distance from the contact zone of the coating with the substrate.

Results and discussion

In Fig. 1, an electron microscopic image displays the cross-section of the contact zone between the coating (HEA) and the substrate (alloy 5083). An extended layer, up to 700 μm thick, is evident, characterized by microcracks along the contact boundary on the substrate side. The sinuous boundaries of the contact layer suggest a high degree of fusion between the substrate and deposited material.

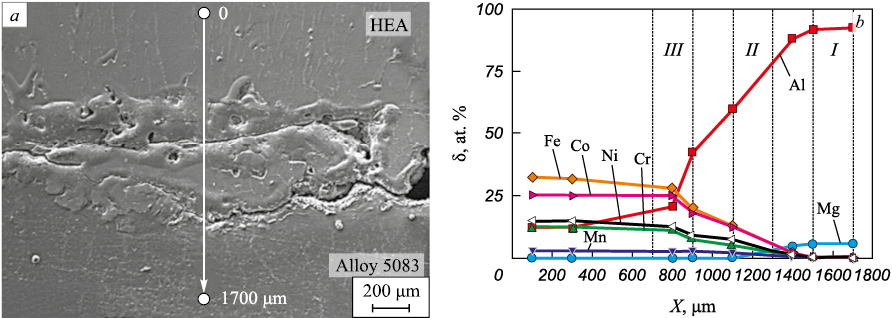

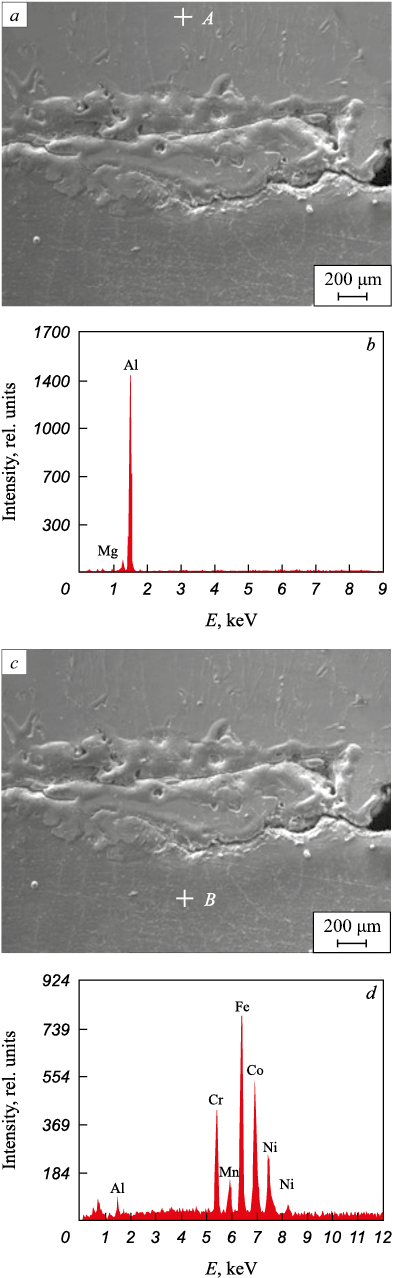

X-ray spectral microanalysis revealed mutual diffusion of atoms from the substrate and coating, as indicated in Table 1. Notably, the near-contact layer of the coating shows aluminum doping (Fig. 1, a, b, analysis region A), while the near-contact layer of the substrate exhibits doping with HEA elements (Fig. 1, c, d, analysis region B). Significantly, aluminum is more pronounced as a dopant in the coating, likely attributed to its lower melting point compared to HEA. Fig. 2 illustrates the change in elemental composition in the contact layer of the film – substrate system during the transition from the surfacing metal to the substrate metal (Fig. 2, b). A smooth transition in the elemental composition of the contact zone suggests the absence of vortex flows in the employed method of coating deposition on the substrate and subsequent irradiation with a pulsed electron beam.

Under the conditions of irradiation with a pulsed electron beam, mutual doping of the coating and substrate is expected to result in a significant alteration of the phase composition in the contact zone. The elemental and phase compositions were investigated using thin foil methods in layers (Fig. 2, b).

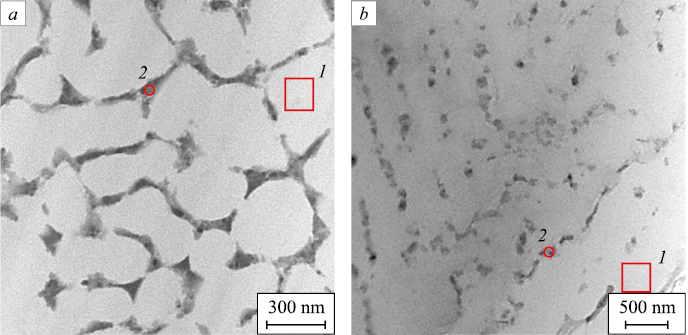

The examination revealed that the structure of layer I is characterized by cells displaying high-speed crystallization (Fig. 3, a). As it moves away from the contact zone with the coating, the cellular structure transforms into a layered structure (Fig. 3, b). The majority of cells constitute a solid solution of magnesium in aluminum, consistent with alloy 5083 (Table 2, analysis regions 1 and 2 are indicated in Fig. 3). Second-phase layers at the cell boundaries are enriched with atoms from both the surfacing and substrate.

Through darkfield analysis with subsequent microelectronogram identification, it was determined that the majority of high-speed crystallization cells were formed by a solid solution based on aluminum. These cells are separated by layers of the Mg₂Si phase.

Layer II exhibits a lamellar structure seemingly arising from eutectic transformation during high-speed heat treatment initiated by the pulsed electron beam (Fig. 4, а). X-ray spectral microanalysis of the foil indicates that the predominant element in layer II is aluminum (76.8 %), accompanied by smaller amounts of Mg (4.1 %), Cr (2.2 %), Mn (0.3 %), Fe (4.9 %), Co (1.6 %), Ni (10.1 %) (at. %).

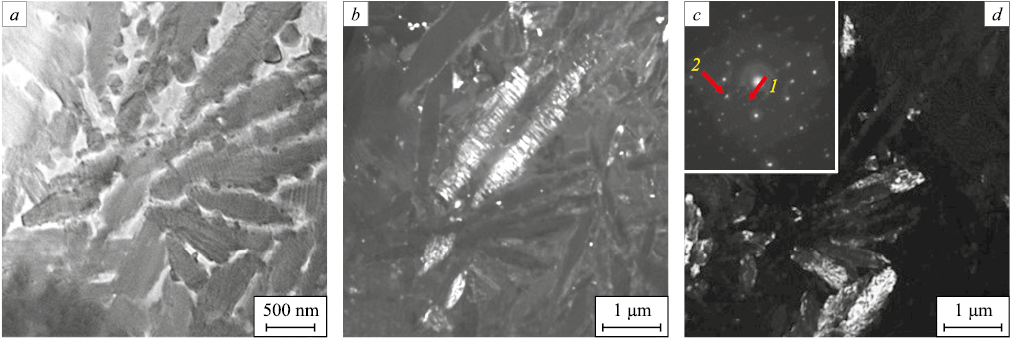

Darkfield analysis, coupled with subsequent microelectronogram identification, revealed that this layer is composed of plates corresponding to the following phases: Al₁₃Fe₄ (Fig. 4, b), Cr – Ni – Fe and Al₆Fe (Fig. 4, d).

Layer III, akin to layer I, consists of cells displaying high-speed crystallization (Fig. 5, a). The majority of these cells constitute an alloy with the composition 0.17 % Mg – 20.3 % Al – 4.3 % Cr – 16.7 % Fe – 9.3 % Co – 49.2 % Ni, aligning with a HEA doped with substrate elements. Interlayers of the second phase, situated along the boundaries of the cells, are also formed by elements from the surfacing and substrate (41.5 % Mg – 10.9 % Al – 9.0 % Cr – 1.0 % Mn – 15.2 % Fe – 4.1 % Co – 18.4 % Ni).

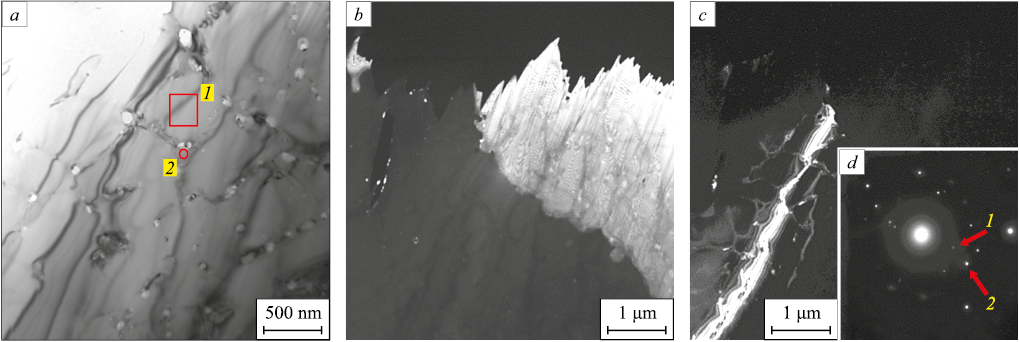

Darkfield analysis, along with microelectronogram indication, revealed that the bulk of high-speed crystallization cells in layer III is constituted by a solid solution based on HEA, doped with aluminum and magnesium (Fig. 5, b). These crystallization cells are separated by interlayers of the Al₁₈Cr₂Mg₃ phase (Fig. 5, c).

Conclusions

The wire-arc additive manufacturing method was employed to create a HEA coating with a non-equiatomic elemental composition Mn – Cr – Fe – Co – Ni on alloy 5083. The contact zone of the coating – substrate system underwent irradiation with an intense pulsed electron beam. Through advanced techniques in physical materials science, investigations into the elemental and phase compositions, as well as the state of the defective substructure of the alloy formed in the contact zone of the substrate – coating system, were conducted. The analysis revealed mutual doping of the coating and substrate in a layer with an approximate thickness of 1700 μm. The high-speed cooling of the contact zone in the coating – substrate system, occurring under the thermal influence initiated by a pulsed electron beam, resulted in the formation of a multi-element, multi-phase submicro-nanocrystalline structure. The contact layer adjacent to the substrate exhibited a high-speed cellular crystallization structure, with the cell bulk formed by a solid solution of magnesium in aluminum, corresponding to alloy 5083. Interlayers of the second phase, enriched in atoms from both the coating and substrate, were observed along the cell boundaries. In the central region of the contact zone, plate-shaped crystallites were found, suggesting a potential eutectic nature of formation. The primary chemical element in this area was aluminum, constituting approximately 77 at. %. The contact layer adjacent to the coating displayed a high-speed cellular crystallization structure, with the majority of cells formed by an alloy composition (0.17 % Mg – 20.3 % Al – 4.3 % Cr – 16.7 % Fe – 9.3 % Co – 49.2 % Ni) corresponding to HEA, doped with substrate elements. Interlayers of the second phase, located along the boundaries of the cells, were enriched with magnesium and, to a lesser extent, with atoms forming the coating.
