Structural changes in the melt of a heat-resistant nickel alloy as phase transition of the second order

Introduction

An important aspect in enhancing the properties of metal products rests in the preparation of the melts for crystallization, contingent upon attaining an equilibrium state within a broad temperature range. The existence of a non-equilibrium melt, slightly above the liquidus temperature, can be explained by the residual presence of solid structures. This phenomenon is comprehended through the lens of a quasicrystalline model portraying a micro-inhomogeneous state, depicted as an array of atomic microgroups (clusters) of varying sizes, coupled with an irregular distribution of alloying elements. As the temperature of the melt rises during heating, the structural transformations take place. Consequently, the melt attains a state of equilibrium, characterized by micro-homogeneity, sustained until the onset of crystallization. This transformation yields advantageous casting structures and substantially enhances the material’s functional properties. This thermal treatment of melt finds extensive industrial utility and is denoted as thermal time treatment (TTT) or high-temperature melt treatment (HTMT) [1].

Multi-component heat-resistant nickel compositions are used in manufacturing the most critical components of gas turbine engines designed to operate under high- temperature and tensile stress conditions. The chemical composition comprises up to 22 alloying elements: C, Cr, Co, Mo, W, Al, Ti, Nb, B, Fe, Y, Zr, Ta, Re, Ru, V, Ce, La, Mn, Mg, Hf, Si, and may also contain challenging-to-remove impurities such as S, Si, P, and dissolved gases O, N. However, at the metallurgical production stage, several challenges emerge, including defects, low yield, and complexities in utilizing waste materials. The application of HTMT for heat-resistant nickel alloys has substantially addressed these issues and notably improved the quality of metal products [2].

The development of HTMT procedures for heat-resistant nickel alloys is rooted in an in-depth examination of structural changes occurring in melts during heating. A proposed quasicrystalline model delineates a micro-inhomogeneous state for melts of heat-resistant nickel alloys [1]: liquid heat-resistant nickel alloys comprise atomic microgroups exhibiting a stoichiometric composition akin to the primary strengthening γ′-phase Ni3(Al, Ti). The act of heating or prolonged isothermal holding of a metallic liquid facilitates the transformation of melts into a homogeneous and microhomogeneous state across an extensive temperature range. This transformation is irreversible and persists until the initiation of solid structure formation. For most investigated metallic materials, such structural changes represent a second-order phase transition, known as a liquid–liquid transition (LLT) [3; 4]. Post-restructuring, a stable metallic liquid emerges, comprising homogeneous atomic microgroups characterized by smaller radii, altered interatomic distances, or modified coordination numbers [3; 4].

Experimental evidence supports the structural modifications observed in the metal melts of heat-resistant nickel alloys [3 – 5]. Given the ongoing debate surrounding the mechanism underlying these changes in nickel-based alloys, this study aims to ascertain whether the structural alterations occurring during the heating of nickel compositions align with a second-order phase transition.

Experimental

The heat-resistant nickel alloy ZhS6U was selected as the test material due to its frequent industrial usage. The melting composition is detailed in Table.

According to the Landau phenomenological theory [6], second-order phase transitions are characterized by the continuity of state changes without any release or absorption of latent energy.

Differential Thermal Analysis (DTA) stands as the primary method for detecting the presence of latent energy release or absorption in a process. Fig. 1 displays DTA curves acquired during the heating (1) and subsequent cooling (2) of the ZhS6U alloy. These curve patterns are typical for a majority of heat-resistant nickel alloy grades.

The arrows in the figures indicate the solidus temperature (t_S) and liquidus temperature (t_L). Within the temperature range of 1250 to 1350 °C, distinct thermal effects related to both the melting (1) and subsequent crystallization (2) of the studied alloy were identified. Above the liquidus temperature, the DTA curves exhibit a horizontal line, indicating a complete absence of heat absorption or release over an extended temperature range. The experimental findings strongly suggest the absence of latent heat during the structural changes in the liquid heat-resistant alloy.

For this investigation, the electrical resistivity method was chosen due to its high sensitivity in studying structural alterations in melts of heat-resistant nickel alloys [2]. Further details regarding this technique are available in [7]. Polytherms ρ = f (t) (Fig. 2) and isotherms ρ = f (τ) (Fig. 3) of the considered alloy were analyzed.

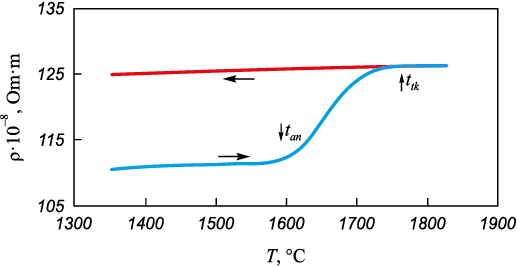

The curves ρ = f (t) obtained during both heating and subsequent cooling of the ZhS6U melt exhibit a characteristic pattern observed in most liquid heat-resistant nickel compositions [2; 5]. The heating polytherm reveals a non-monotonic change in electrical resistivity, featuring specific points denoted as t_an and t_k. Between these points, an interval with an anomalous increase in electrical resistivity is observed. Another characteristic of electrical resistivity polytherms in heat-resistant nickel alloys is the phenomenon of hysteresis, showcasing a discrepancy between the heating and cooling branches.

To discern the nature of structural alterations occurring in the ZhS6U melt within the temperature range below t_k, measurements of electrical resistivity were conducted during isothermal holding at temperatures of 1417, 1448, and 1479 °C. The observed electrical resistance was recorded at intervals of 300 s (5 min).

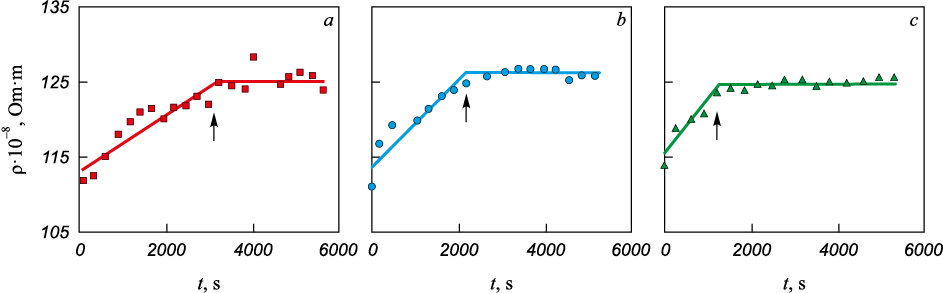

Based on the experimental findings, it was observed that during the duration of isothermal exposures, the electrical resistivity consistently rose until reaching a peak (Fig. 3), following which its sensitivity to time diminished. Moreover, higher holding temperatures resulted in a shorter duration for the melt to reach its peak resistivity.

Results and discussion

The behavior of the ρ = f(t) function and the positioning of points t_an and t_k explanation through the quasi-chemical model of the micro-inhomogeneous state in heat-resistant nickel alloys [1]: upon immediate melting, the structure of the ZhS6U melt exhibits homogeneity but retains a micro-inhomogeneous nature. It comprises dynamic clusters of varying sizes and uneven distribution of atoms from the alloy’s chemical composition. With rising temperatures, a transition occurs toward a state of enhanced homogeneity and microhomogeneity, characterized by more uniform sizes and compositions of atomic associations. The cooling polytherms of samples preheated to temperatures exceeding t_k exhibit linearity, signifying that structural changes persist during cooling across an extensive temperature range. This suggests that the melt approaches a more equilibrium state before the onset of solidification.

The Drude’s theory proposes an equation defining the electrical conductivity of metals as follows

where n is the concentration of all electrons per unit volume (considered as the concentration of conduction electrons in contemporary models), while τ_m is the average free travel time.

In modern models, the equation retains its formal structure; however, the interpretation of the included parameters evolves [8]. Notably, the only parameter correlated with the nonlinear rise in electrical resistivity is the average free travel time. This nonlinear increase in electrical resistivity (equivalently, decrease in electrical conductivity) is attributed to a heightened presence of scattering centers.

The phenomenon of hysteresis in the physical properties of melts (Fig. 2), characterized by a discrepancy between the forward and reverse branches, has been extensively detailed by several researchers [9 – 12]. These studies emphasize the irreversibility of changes occurring in the melt over a broad temperature range.

Analysis of the experimental data illustrated in Fig. 3 reveals that the time constant diminishes with escalating temperatures during isothermal holding, indicating a relationship described by θ = f (t). Additionally, an empirical regularity emerged:

where t is the temperature of isothermal holding, while t_liq is the liquidus point.

By formally approaching the time constant towards zero, we can approximate the temperature at which the vast majority of clusters undergo dissolution, signifying the temperature t_k corresponding to the transition of the metallic liquid into a microhomogeneous state.

Consequently, structural transformations within the metallic liquid transpire not only during the process of heating to temperature t_k, but also as a consequence of prolonged time exposures. In essence, the decay of clusters occurs not solely due to alterations in the system’s thermodynamic parameters (polytherm) but also when these parameters remain fixed (isotherm). This observation underscores the continuum of the ongoing process, a characteristic indicative of a second-order phase transition, as previously noted.

Parallel results concerning relaxation during extended exposures have been reported by other researchers [13 – 15].

Given that the second-order LLT phase transition exhibits both thermodynamic and structural characteristics, the provided thermodynamic rationale allows us to infer the mechanism of structural modifications in the ZhS6U melt. Upon immediate melting, the melt assumes a micro-inhomogeneous state, characterized by clusters of varying sizes and an uneven distribution of chemical elements. Subsequent heating and/or isothermal holding induce a second-order LLT phase transition within the melt: the original structure of the metallic liquid is replaced by a similar structure possessing a lower density. This transition involves the breakdown of cluster formations, a uniform redistribution of atoms, and the formation of new clusters with smaller sizes. The rise in electrical resistivity also indicates an increase in the number of atomic microgroups. These structural changes are irreversible, as evidenced by the disparity between the cooling polytherm and the heating polytherm. The resultant structural state demonstrates stability and microhomogeneity, validated by the absence of extremities in the cooling polytherm.

These observations align with the findings of authors in [16], who also affirm that the stability of cluster sizes in each phase region signifies a microhomogeneous state.

Moreover, the works by authors in [17 – 20] echo similar conclusions. They further highlight a notable sharp decrease in lattice parameter and coordination number with increasing temperature, contributing significantly to the observed increase in electrical resistivity.

Conclusions

Investigations on the heat-resistant nickel alloy ZhS6U reveal that when subjected to heating or isothermal holding, the alloy undergoes structural transformations, transitioning into a microhomogeneous state across an extensive temperature range. The delineated boundaries of these structural alterations on the electrical resistivity polytherms of the melt are denoted as t_an and t_k indicating irreversible changes.

The experimentally derived time constant, describing the process of structural modifications in the nickel-based melt during fixed thermodynamic parameters (isothermal holding), substantiates that these changes correspond to a second-order LLT phase transition.

The presented thermodynamic evidence elucidates the nature of structural changes in the melt of the heat-resistant nickel alloy, indicating a thermal-temporal effect referred to as the liquid-liquid transformation (LLT). Prior to LLT, the melt comprises clusters of varying sizes and configurations of atoms. During the LLT phase, atomic microgroups disintegrate, leading to a uniform redistribution of alloying elements, consequently forming new clusters characterized by reduced sizes and enhanced chemical homogeneity.

These findings align with the quasicrystalline theory of the microinhomogeneous state of metallic liquids, serving as an extension and not contradicting its principles.
