Physico-chemical analysis of 12Kh18N9TL steel melts for quality control of cast products

Introduction

Austenitic corrosion-resistant steel grade 12Kh18N9TL exhibits high mechanical properties combined with resistance to organic acid solutions [1]. The production of castings from 12Kh18N9TL steel is complicated by its low casting properties. The castings are often characterized by microstructural heterogeneity, susceptibility to intergranular corrosion, and low resistance to cracking. During foundry production, increased formation of films, ingot porosity, shrinkage cavities, and a high content of nonmetallic inclusions in the ingot structure are observed [2].

Modern quality requirements for cast products made of corrosion-resistant and heat-resistant steels such as 12Kh18N9TL are driven by their wide application in the power industry, chemical engineering, and aircraft manufacturing. Experimental and exploratory studies are carried out to improve the mechanical properties of cast products by stabilizing the austenitic structure through alloying and thermomechanical treatment [3 – 5]. In [6], the authors suggest that alloying with copper, silicon, titanium, and niobium favors achieving a combination of high corrosion-electrochemical and mechanical properties in steel. In [7], it was shown that laser pulse surface modification of stainless steel 12Kh18N10T produces iron oxide (Fe₃O₄) and chromium oxide (Cr₂O₃), with titanium dioxide (TiO₂) also present [7]. The absence of undesirable surface contaminants, a decrease in their size and quantity, as well as an increase in the amount of retained austenite, enhance the corrosion resistance of austenitic steels [8]. It was established that in samples of austenitic stainless steels grades 03Kh18N10 and 08Kh18N10T, clusters of titanium nitrides and oxides of various dispersity are located around globular nonmetallic inclusions containing a secondary phase [9]. On the surface of cold-rolled sheet made of 08Kh18N10T steel, coarse defects in the form of delaminations were detected, consisting of titanium nitrides and a slag-forming mixture. Nonmetallic inclusions were noted to play a decisive role in degrading the mechanical properties of castings [10].

The casting properties of steel have a direct effect on obtaining castings and ingots with specified technological parameters. The most relevant physicochemical properties of the melt for foundry production are viscosity and surface tension. Slag induction during melting reduces the oxidation loss of volatile components and prevents the formation of oxide compounds. However, during melt tapping from the furnace, the slag becomes entrained in the melt, and slag inclusions may be present in steel ingots. In tests measuring the surface tension of liquid 12Kh18N9TL steel, the authors observed the release of slag during sample heating. Conducting systematic studies of the behavior of slag inclusions in steel is the objective of this work.

At “Precision Casting Center” (LLC, Ekaterinburg), castings of 12Kh18N9TL steel are produced as part of the import substitution program, highlighting the need to improve product quality at the melt preparation stage. Defects in finished products have been linked to the presence of slag inclusions in the casting. The objective of this study is to characterize the regularities of slag inclusion behavior in castings to improve control over the quality of 12Kh18N9TL cast products.

Materials and methods

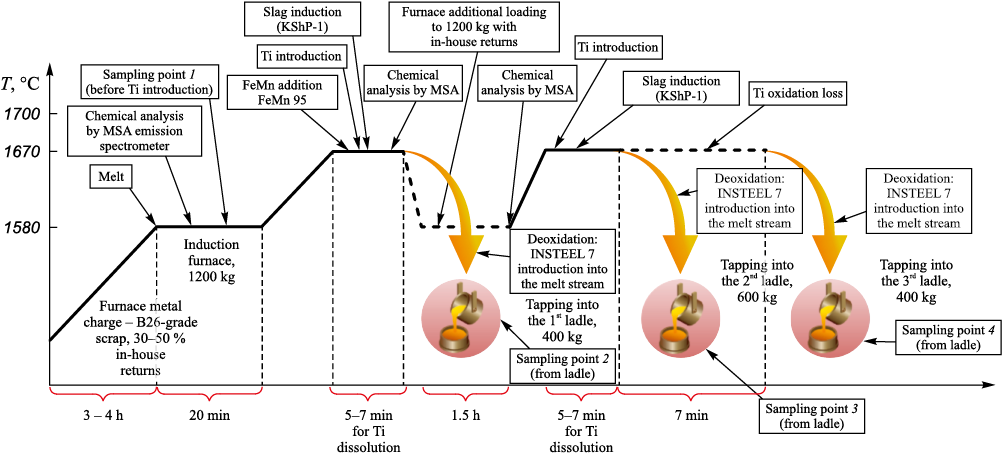

Samples of 12Kh18N9TL steel were taken from an induction crucible furnace under production conditions at “Precision Casting Center” (LLC, Ekaterinburg) according to the technological scheme shown in Fig. 1. The production process of cast products made of 12Kh18N9TL steel has the following specific features. As the metal charge, returns of the same grade from in-house production and B26-grade scrap are used. The melting of the metal charge lasts about 3.5 h, with heating of the melt to 1580 °C, at which point a sample is taken for elemental composition analysis. The elemental composition is determined using an MSA emission spectrometer (model MSA II v5). After titanium introduction, the melt surface was covered with the perlite-based slag coagulator KShP-1. The holding time for titanium dissolution in the melt is 5 – 7 min, and the melt tapping temperature into the ladle is 1650 – 1670 °C. Before melt tapping, a 200 g portion of aluminum is placed at the bottom of the ladle. The modifier INSTEEL 7 is introduced into the melt stream at a rate of 500 g per 400 kg of metal. After tapping the first portion of the melt into the ladle, the residual melt in the furnace is additionally loaded with 12Kh18N9TL steel and then heated to 1580 °C for 1.5 h, after which another sample is taken for elemental analysis. An 8 kg portion of titanium is added based on the elemental analysis results to achieve the required elemental composition. Before tapping the melt into the second and third ladles, slag induction on the melt surface is repeated, followed by heating to 1650 – 1670 °C. A 300 g portion of aluminum is also placed at the bottom of each ladle. During melt tapping, the modifier INSTEEL 7 is again introduced into the melt stream at a rate of 750 g per 600 kg of metal.

Thus, samples for the present study were taken under production conditions in accordance with the technological scheme shown in Fig. 1. Sample 1 was taken from the furnace before titanium introduction at a melt temperature of 1580 °C. Sample 2 was taken from the ladle after titanium introduction. Samples 3 and 4 were taken from the second and third ladles, respectively. The results of the chemical analysis of 12Kh18N9TL steel samples are presented in Table 1.

The kinematic viscosity (ν) and surface tension (σ) of liquid 12Kh18N9TL steel were measured using the equipment of the Research Center of Physics of Metallic Liquids, Institute of Physics of Metals (UrFU, Russia). The kinematic viscosity was measured by the oscillating-cup method [11; 12]. The tests were carried out in an atmosphere of high-purity helium under a pressure of 10⁵ Pa. The temperature was measured with a BP-5/20 thermocouple, the readings of which were transmitted to a Termodat-14E2 controller. Kinematic viscosity was measured in 30 – 40 °C increments during heating and subsequent cooling. At each temperature, at least ten consecutive readings were acquired. Values were considered stabilized when the root-mean-square (RMS) deviation did not exceed the random measurement error. The oscillation parameters were recorded optically throughout the tests. The systematic error of the viscosity measurement was 3 %, and the random error governing within-test scatter did not exceed 1.5 % at the 95 % confidence level (p = 0.95).

The surface tension of liquid 12Kh18N9TL steel was measured by the sessile-drop method during heating to 1750 °C, followed by sample cooling. The working chamber was evacuated to 0.001 Pa and then backfilled with helium to approximately 10⁵ Pa. Samples were held in the inert-gas chamber for 5 – 8 min at the melting temperature, then heated to 1750 °C in 30 – 40 °C increments. The isothermal hold at each setpoint was at least 15 min. The drop profile was recorded with a digital camera, and the images were processed on a computer. The geometric parameters of the drop profile were determined using SIAMS 700 image-analysis software with an accuracy of 0.3 – 0.6°. No melt evaporation or drop volume loss was observed. The measurement error for density and surface tension did not exceed 7 %, and the random error governing within-test scatter did not exceed 1.5 % at the 95 % confidence level (p = 0.95) [13 – 16]. The method and apparatus for determining the density and surface tension of metallic melts are described in [17 – 19].

Results and discussion

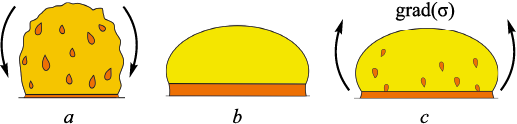

During observation of the sample with a digital camera in the course of surface tension measurements, slag release was detected during sample heating (Fig. 2, a), which made it impossible to perform measurements in the heating mode. When the maximum temperature was reached, the contour of the liquid drop was formed as the slag drained from the drop surface into the slag bath (Fig. 2, b). Upon subsequent cooling, slag flowed from the formed slag bath onto the sample surface (Fig. 2, c). These observations confirmed the presence of slag inclusions within the sample volume.

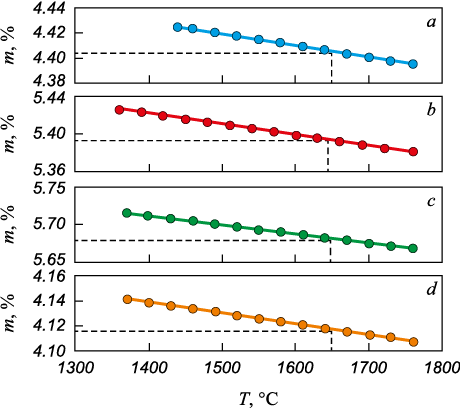

The volume fraction of slag in the sample was determined according to the procedure described in [20]. Fig. 3 shows the temperature dependence of the volume fraction of slag inclusions m (%) in the 12Kh18N9TL steel samples. A progressive increase in the volume fraction of slag inclusions from sample 1 to sample 3 is observed, whereas the lowest value was recorded for sample 4. The volume fractions of slag inclusions at the melting temperature of 12Kh18N9TL steel are given in Table 2.

The volume fraction of slag inclusions increases from the first sample taken from the melt before titanium introduction to the third sample taken from the second ladle after furnace replenishment. In the fourth sample, taken from the third ladle according to the technological scheme (Fig. 1), the volume fraction of slag inclusions was minimal

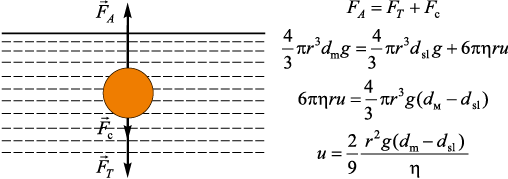

A slag particle of radius r_sl and density d_sl located in the melt of density d_m and dynamic viscosity μ, is affected by buoyancy force \({F_A} = \frac{4}{3}\pi {r^3}{d_{\rm{m}}}g,\) gravity \({F_T} = \frac{4}{3}\pi {r^3}{d_{{\rm{sl}}}}g\) and the Stokes force F_s = 6πrμu. Under the combined action of these forces, slag particles rise to the surface of the melt because of the density difference between the slag and the liquid metal (Fig. 4). When all three forces are balanced, a slag particle moves through the melt volume at a constant velocity u.

The ascent rate u of a slag particle depends on its size and can be expressed as

where r is the particle radius; g is the acceleration due to gravity; d_m is the density of the liquid metal; d_sl is the slag density; v is the kinematic viscosity of the liquid metal.

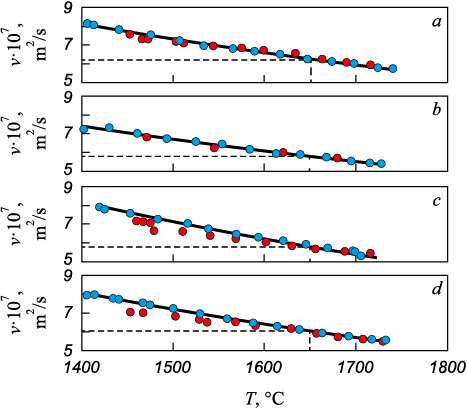

Fig. 5 presents the temperature dependence of kinematic viscosity obtained during heating and subsequent cooling. The absence of hysteresis between the heating and cooling branches indicates the lack of irreversible structural transformations in the melt, and consequently, the stability of slag particles within the melt volume up to 1740 °C. Therefore, slag particle removal from the melt is possible only due to their ascent to the surface.

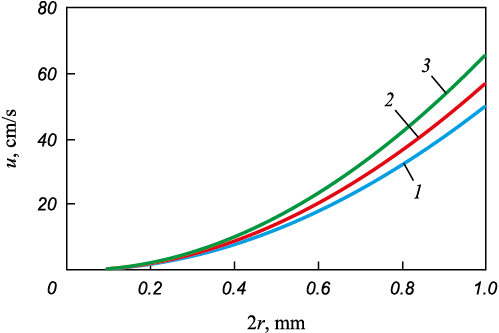

Fig. 6 shows the dependence of slag particle velocity in liquid 12Kh18N9TL steel on particle size, as calculated from Equation (1). It follows from Fig. 6 that large particles rise rapidly to the surface, while particles smaller than 10 μm fail to reach the surface during the smelting process and remain within the melt volume.

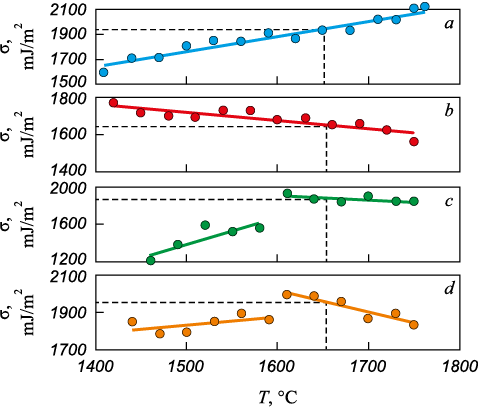

Fig. 7 displays the results of surface tension measurements for liquid 12Kh18N9TL steel samples. In the temperature dependences for samples 3 and 4, anomalies were detected near 1600 °C, associated with the formation of a slag film on the sample surface due to slag flow from the slag bath. Slag particles and liquid metal possess different surface tension values. The surface tension determines the force that pulls the drop toward an ellipsoidal shape. A surface tension gradient (dσ/dr) in the vertical direction induces the Marangoni force, which drives slag particles from the base of the drop toward its apex; this force is counterbalanced by gravity (Fig. 8). The Marangoni force was estimated from the surface tension gradient (dσ/dr) using expression [21]

Thus, a slag particle located on the surface of a liquid 12Kh18N9TL steel drop is subject to both gravity F_f = ρ_slgV_p and the Marangoni force (2) (Fig. 8). The equilibrium condition of these forces can be written as:

\[\begin{array}{c}\frac{4}{3}\pi {r^3}{\rho _{{\rm{sl}}}}g = 4\pi {r^2}\frac{{d\sigma }}{{dr}},\\\frac{{d\sigma }}{{dr}} = {\rho _{{\rm{sl}}}}gr.\end{array}\]

From this, the expression for Δσ can be obtained \(\int {d\sigma } = \int {{\rho _{{\rm{sl}}}}grdr} ,\)

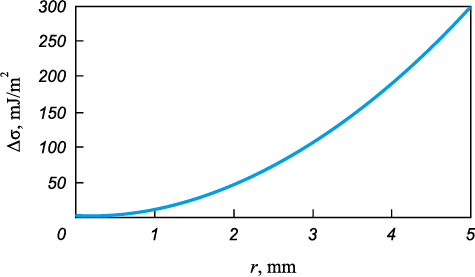

In equation (3), Δσ represents the difference between the surface tension values of slag and metal, at which the slag particle remains in equilibrium under the opposing actions of gravity and the Marangoni force. Fig. 9 shows the dependence of Δσ on the slag particle radius on the drop surface. When Δσ = 200 mJ/m², slag particles larger than 4 mm can move upward from the base toward the apex of the drop surface. The observed slag flow phenomenon indicates that during slag bath formation at the base of the drop, the surface tension changes to a value at which the Marangoni forces become dominant.

Table 3 presents the chemical composition of the samples and the corresponding volume fraction of slag inclusions. Analysis of the data shows that the volume fraction of slag inclusions increases with increasing titanium content, suggesting a decisive role of titanium additions in the formation of slag inclusions.

Conclusions

The behavior of slag inclusions was studied in samples taken during the casting of austenitic corrosion-resistant steel 12Kh18N9TL. In surface tension tests of liquid steel performed by the sessile-drop method using a digital camera, slag release from the sample was observed upon heating to 1760 °C. Slag drops flowed from the sample surface, forming a slag bath at the base of the drop. During subsequent cooling of the liquid-steel drop, slag particles were found to flow from the slag bath onto the sample surface under the action of the Marangoni force. The size dependence of the slag inclusion ascent rate and the Marangoni force magnitude was evaluated. Analysis of the relationship between slag particle ascent rate and particle size showed that only particles smaller than 10 μm can remain in the melt volume, while larger particles rise to the surface of the liquid bath. It was established that slag particles up to 4 mm in size can flow onto the sample surface under the action of the Marangoni force.

The physicochemical properties of liquid 12Kh18N9TL steel relevant to foundry practice, namely surface tension and kinematic viscosity, were measured over a temperature range of 1370 – 1760 °C. No hysteresis between the heating and cooling branches of the kinematic-viscosity curves was observed, indicating the absence of irreversible structural transformations in the melt. This suggests that slag particles remain stable in the melt up to 1760 °C. In the temperature dependences of surface tension for samples taken from the third and fourth ladles during 12Kh18N9TL steel casting, anomalies were detected near 1600 °C, corresponding to a sharp decrease in surface tension. Such anomalous behavior is attributed to slag particle flow from the formed slag bath onto the drop surface under the influence of the Marangoni force. The volume fraction of slag inclusions in the melt was also evaluated. The lowest volume fractions were recorded in the sample taken before titanium addition and in the sample taken from the fourth ladle.

The volume fraction of slag inclusions in the melt was also evaluated. The lowest volume fractions were recorded in the sample taken before titanium addition and in the sample taken from the fourth ladle. The reduction in slag inclusion volume fraction in the latter sample, taken from the final ladle into which the residual liquid metal was tapped from the furnace, is associated with slag particle flotation to the liquid-metal surface during steel smelting. A correlation was established between the volume fraction of slag inclusions and the titanium content in the samples. An increase in titanium concentration was accompanied by a rise in the volume fraction of slag inclusions, indicating that titanium plays a decisive role in the formation of slag inclusions. It was concluded that titanium additions to the melt lead to an increase in the volume fraction of slag inclusions in the casting.
