Phase composition and microstructure of intermetallic alloys obtained using electron-beam additive manufacturing

Introduction

Intermetallic alloys are solid materials composed of two or more metallic elements [1]. Unlike traditional alloys, intermetallics feature an ordered crystal structure with strong ionic or covalent bonds [1; 2]. These characteristics give intermetallic compounds a range of unique physical and mechanical properties, including high melting points and exceptional strength, even at extremely high temperatures [1; 2].

One of the most intriguing intermetallic compounds for industrial applications is the Ni₃Al alloy. It boasts high tensile and compressive strength across a broad temperature range, up to 1100 °C [3 – 5], a positive temperature dependence of yield strength between 0 and 800 – 900 °C [3 – 5], and excellent resistance to corrosion, fatigue, creep, and wear, even at elevated temperatures [6 – 8]. These unique properties make nickel and aluminum-based alloys highly valuable in various industries for high-temperature applications, particularly in the production of gas turbine engine blades, turbocharger rotors for diesel power plants, and structural components in the automotive, aerospace, metallurgical, and metalworking sectors [2; 3; 9].

However, these alloys have significant drawbacks, including low plasticity and a tendency toward brittle fracture, which complicates their processing during manufacturing [1; 4; 5]. Traditional powder metallurgy methods – such as casting, sintering, self-propagating high-temperature synthesis, and directional solidification [7; 9; 10] – are not suitable for producing finished products from intermetallic alloys [11 – 13]. As a result, additive manufacturing has emerged as a promising method for producing machine and mechanism parts from nickel aluminide. This process involves creating a part with a specified shape by sequentially layering and melting powder raw materials or wire using a high-energy beam [10; 11; 14].

In [11], intermetallic alloys with a composite structure were produced using selective laser sintering (SLS) with various mass ratios of aluminum and nichrome alloy powders. The resulting matrix, based on nichrome, was filled with intermetallic particles of Ni₃Al and NiAl. In [15], layered intermetallic structures based on nickel and aluminum with various stoichiometric compositions were obtained using selective laser melting (SLM) technology. In [16], samples of Ni₃Al intermetallic alloy were produced using SLM and direct laser metal deposition (DLMD) methods, exhibiting slight microporosity and microcracks that formed during the cooling of the billets. Notably, the samples produced by SLS showed smaller grain sizes compared to those formed during DLMD additive manufacturing, which is attributed to the different heating and cooling regimes in the additive manufacturing process. The cracking of additive intermetallic billets can be avoided by preheating the powder mixture to 1100 °С [13]. In [17], selective electron-beam melting (SEBM) of the IC21 intermetallic alloy powder, based on nickel and aluminum, resulted in a material with a structure free of pores and predominantly consisting of the γ′ phase of Ni₃Al. The alloy demonstrated high strength properties across a wide temperature range (25 – 1000 °C). When forming billets of the IC21 alloy using SLM technology, samples with a dendritic structure were obtained, consisting mainly of the γ′ phase of Ni₃Al, with γ-phase and NiMo-phase grains in the dendrites and interdendritic spaces, respectively [18]. The significant cracking observed in the billets during their crystallization process was also highlighted in.

The primary drawbacks of using additive technologies based on dispersed powders as raw materials include the high cost of powders, their rapid oxidation, and low deposition rates, among other issues [12]. A solution to these problems is to use additive manufacturing methods that employ one or more metallic wires of a specified composition as the raw material. In [12], intermetallic alloys were produced using the wire and arc additive manufacturing (WAAM) method, utilizing nickel and aluminum wires. The refractory nickel wire was melted by an electric arc source, while the low-melting aluminum wire was added directly to the melt bath. It was shown that by adjusting the wire feed rates, the phase composition of the resulting compounds (Ni₃Al, NiAl, etc.) could be altered. In [14; 19], M. Zhang and co-authors demonstrated that when using a two-wire feed in WAAM, a dendritic γ + γ′ structure with γ′-phase layers in the interdendritic spaces of the Ni₃Al intermetallic alloy forms, and the strength of the resulting billets is comparable to commercial alloys.

Despite its high productivity and the absence of a need for complex and expensive equipment, a drawback of the WAAM method is that the additive manufacturing process occurs in an inert gas environment, which does not fully protect the product from harmful impurities and oxidation. From this perspective, the most effective approach is to use additive technologies where the billets are printed in a vacuum. Such methods include electron-beam additive manufacturing (EBAM) [20].

This study focuses on investigating the structure and phase composition of nickel- and aluminum-based intermetallic alloys produced using EBAM with aluminum and nickel wires.

Experimental methodology

In this study, billets in the form of vertical walls with dimensions of 120×24×7 mm and made of nickel and aluminum-based alloys, were produced using a laboratory electron-beam additive manufacturing (EBAM) setup developed in the Institute of Strength Physics and Materials Science SB RAS. To produce the billets, two wires with a diameter of 1.2 mm – nickel (NP-2 alloy, 99.5 wt. % Ni) and aluminum (ESAB OK Autrod 1070 alloy, 99.8 wt. % Al) – were fed into the melt bath. The additive manufacturing process was carried out under the following parameters: beam current (I) of 30 ÷ 35 mA, beam scanning speed (V_b) of 2.5 mm/s along the deposited layer, accelerating voltage (U) of 30 kV, elliptical beam scan from the center, and a scan frequency of 100 Hz. The process was conducted in a vacuum at a pressure of 10\(^–\)³ Pa. The billets were formed by sequential deposition of layers of uniform thickness onto a mild steel substrate. To obtain intermetallic alloys with varying volumetric contents of components, the feed rate ratios of the nickel and aluminum wires were adjusted, resulting in billets with the following nickel-to-aluminum ratios: 1:1 (Ni + Al), 2:1 (2Ni + Al), and 3:1 (3Ni + Al).

Samples for structural and mechanical studies were cut from the cross-sections of the billets. For microstructural and phase analysis, the samples were mechanically polished, then electrolytically grinded in a solution of 25 g CrO₃ and 210 ml H₃PO₄, and finally etched in a solution of 90 % CH₃COOH and 10 % HClO₄. The microstructure was examined using optical microscopy (OM, Altami MET 1C) and scanning electron microscopy (SEM, Zeiss Leo Evo 50 with an energy-dispersive X-ray spectroscopy (EDS) attachment). X-ray structural and phase analyses were conducted using a Dron-3M diffractometer (Burevestnik) with CoK_α radiation. The lattice parameters of the phases were determined by extrapolating the dependence of the (ahkl), values, determined for each X-ray line with indices (hkl), on the function (cosθ cotθ) [21].

Results and discussion

Microstructure of alloys produced by EBAM

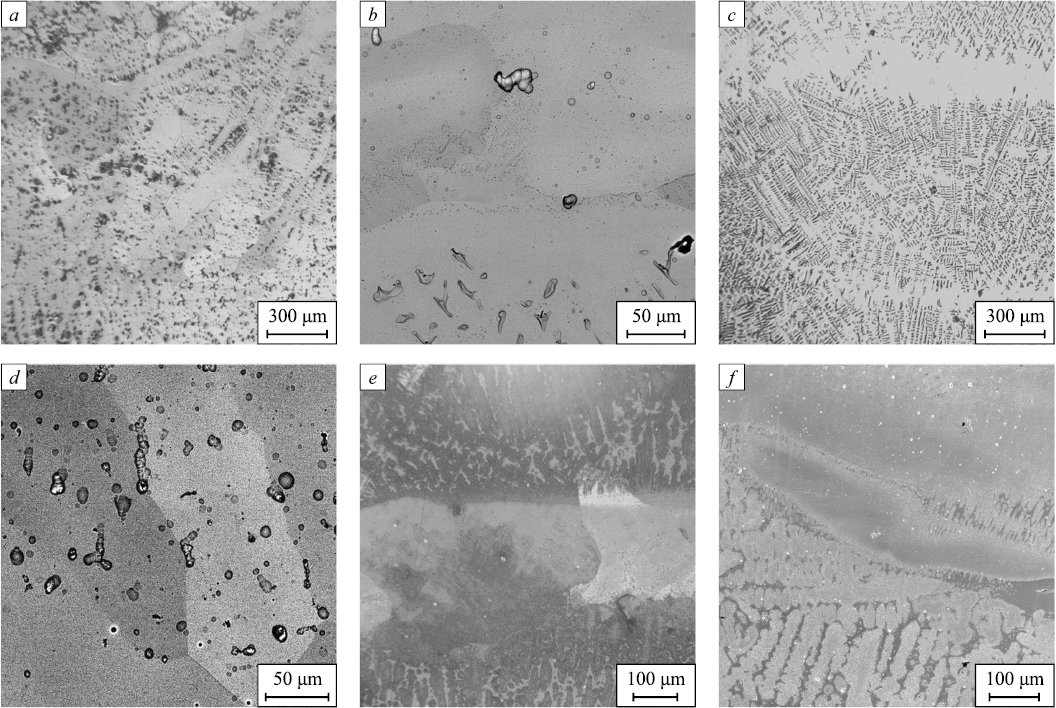

Fig. 1 presents OM and SEM images of the microstructure of nickel and aluminum-based intermetallic alloys produced using EBAM technology. Metallographic analysis revealed that the billets were free of macro- and microscopic pores or cracks. All three alloys exhibited a coarse-grained layered structure. Within the grains, a dendritic microstructure of different morphology often became visible during electrolytic polishing: depending on the grain orientation relative to the polished surface, either extended, wellformed dendritic branches or broken or partially dissolved dendritic lamellae could be observed. Additionally, homogeneous contrast areas (layers) were noted in the images, where no segregation was detected (Fig. 1).

The Ni + Al alloy demonstrated a fairly homogeneous structure with infrequent interlayers. On a macroscopic level, its structure was more uniform than that of the 2Ni + Al and 3Ni + Al alloys in terms of forming a layered structure. Meanwhile, the intragranular microstructure of the equiatomic alloy showed little variation along the height of the billet (Fig. 1, a, b). Most often, equiaxed grains ranging from 100 to 300 µm in size were observed (Fig. 1, a, b). The 2Ni + Al and 3Ni + Al alloys were characterized by a more heterogeneous structure, with relatively thick interlayers (up to 200 µm thick) and grains elongated in the direction of billet growth (Fig. 1, c – e), with grain sizes ranging from 150 to 400 µm. Notably, in alloys with higher nickel content, the dendrites were narrower, and their branches were often intact, indicating a significantly higher density of dendrite/interdendritic boundaries compared to the Ni + Al alloy.

Thus, using two-wire feed EBAM with an equal component ratio results in a homogeneous billet (in terms of microstructure) that is free of macro- and microscopic defects (pores, cracks, etc.) immediately after additive manufacturing.

Phase composition of alloys obtained by EBAM

According to the phase diagram of the nickel – aluminum system, alloys within this binary system can exist in the following phase states [22 – 24]:

– NiAl₃ (orthorhombic lattice, nickel content: 25 at. %);

– Ni₂Al₃ (trigonal crystal lattice, homogeneity range for nickel: 37 – 41 at. %);

– NiAl (BCC lattice, homogeneity range for nickel: 42 – 69 at. %);

– Ni₅Al₃ (orthorhombic crystal lattice, homogeneity range for nickel: 64 – 68 at. %);

– Ni₃Al (γ′-phase with FCC lattice (L1₂ superstructure), homogeneity range for nickel: 73 – 75 at. %);

– Ni₃Al (γ-phase, disordered solid solution with FCC lattice with homogeneity region for nickel: 73 – 75 at. %).

In this study of additive manufacturing of intermetallic alloys, the nickel content fed into the billet during EBAM is relatively high (according to the chemical composition of the NP-2 alloy, not less than 49.5 wt. % for the Ni + Al billet). Therefore, the expected phases in the resulting billets, based on the phase diagram, include NiAl, Ni₅Al₃, Ni₃Al, and a nickel-based alloy enriched with aluminum through a substitution mechanism (when the nickel content in the system exceeds 75 at. %).

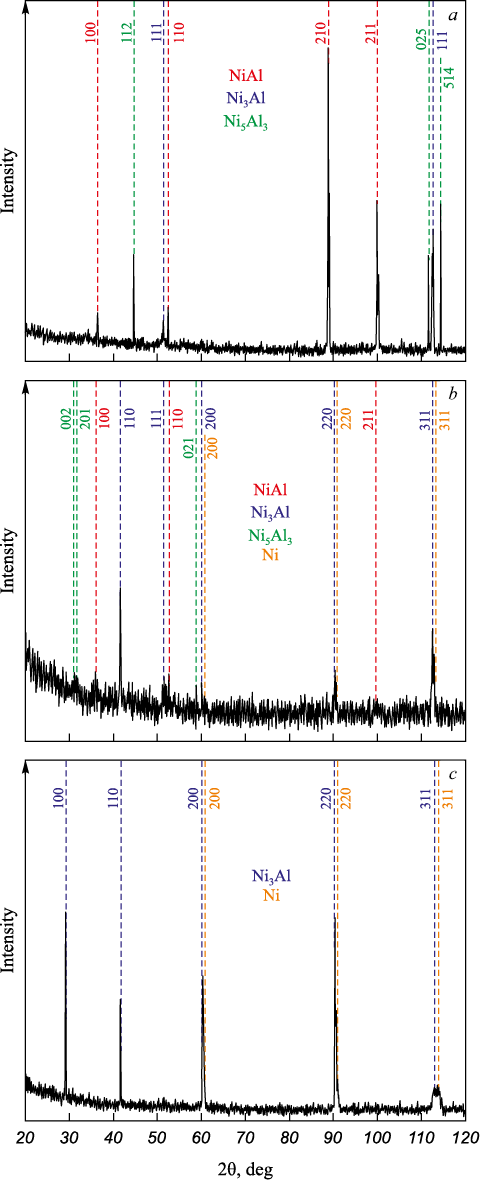

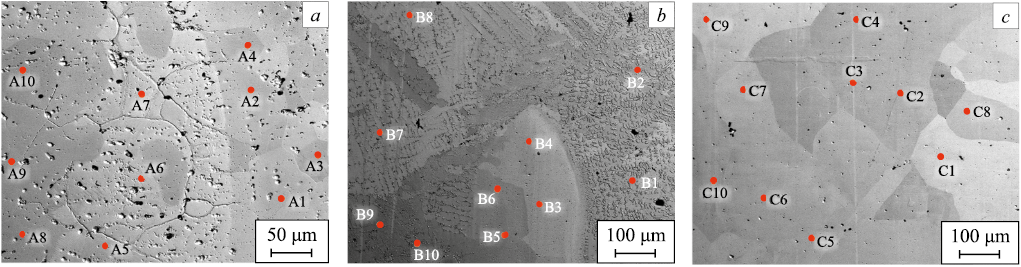

X-ray phase and X-ray microanalyses revealed that the phase composi-tion of the billets produced by EBAM is determined by the feed rate ratio of nickel and aluminum wires into the melt bath, or, in other words, by the mass ratio of the components of forming the intermetallic alloy. Figs. 2 and 3 show X-ray patterns and SEM images with marked EDS spectrum areas for the obtained billets. The table provides data on the chemical composition and corresponding phases in different areas of the examined samples (as per Fig. 3), obtained from EDS analysis for the three billets with different component ratios of nickel and aluminum (phases were identified based on a comparison of the chemical composition in the EDS spectrum area with the “nickel – aluminum” phase diagram [22 – 24]).

Fig. 2, a shows that when the feed rate ratio of the two wires is Ni = 1:1, the resulting billet has a heterophase structure composed of NiAl, Ni₅Al₃, and Ni₃Al phases. However, according to X-ray phase analysis, the Ni₃Al intermetallic phase is not the predominant phase, and EDS analysis does not detect this phase at all (Fig. 3, a, see the Table). Consequently, in the EBAM process, when nickel and aluminum wires are fed into the melt bath at equal speeds, i.e., with a near-equal mass ratio of nickel and aluminum, the formed intermetallic alloy predominantly consists of NiAl and Ni₅Al₃ phases.

Increasing the wire feed rate ratio to Ni:Al = 2:1 in the EBAM process results in an intermetallic alloy with a more complex phase composition. According to the X-ray phase study (Fig. 2, b), the formed billet has a heterophase structure consisting of NiAl, Ni₅Al₃, Ni₃Al, and Ni phases. At the same time, EDS analysis indicates that the main phase in this case is Ni₃Al, with the content of the other three phases being relatively small (Fig. 2, b, see the Table).

Further increasing the wire feed rate ratio to Ni:Al = 3:1 leads to the formation of a two-phase alloy based on Ni and Ni₃Al (Fig. 2, c, Fig. 3, c, Table). In this case, the formed Ni₃Al intermetallic phase has a lattice parameter of a = 0.3572 nm. This value is lower than the typical value for the γ′-phase of a = 0.3589 nm (for the L1₂ superstructure [23]). Such differences may be due to the formation of a two-phase composition (γ + γ′) in the Ni₃Al grains during EBAM, i.e., the formation of regions of disordered γ′-solid solution based on Ni₃Al together with the ordered γ-phase. On the other hand, the lattice parameter of Ni in the formed alloy is higher than that of pure FCC nickel (a = 0.3568 nm vs. a = 0.3526 nm [25]). This may be due to the formation of a solid solution of aluminum in nickel via the substitution mechanism.

The results of X-ray phase analysis and energydispersive spectroscopy (EDS) of the intermetallic alloys produced by EBAM showed that their phase composition generally corresponds to the mass ratio of the initial materials (nickel and aluminum wires) fed into the melt bath during additive manufacturing. For instance, with a Ni ratio of 1:1, the primary phase is NiAl; at a ratio of 2:1, a significant portion of the Ni₃Al phase is formed, with the excess aluminum being redistributed to form Ni₅Al₃ grains. When the nickel content is three times that of aluminum, the primary phase is Ni₃Al. Moreover, X-ray phase and EDS analyses did not detect any unreacted aluminum in the resulting alloys, indicating that all the aluminum was fully incorporated into the formation of intermetallic compounds during the EBAM process.

Thus, the study results demonstrate that the EBAM process allows for the formation of nickel- and aluminum-based intermetallic alloys with a predetermined phase composition by varying the mass ratio of the components fed into the melt bath.

Conclusions

Using EBAM technology with a two-wire feed, billets of nickel- and aluminum-based intermetallic alloys with varying component contents were produced. The mass ratio of nickel to aluminum was adjusted by varying the feed rates of the two wires into the melt bath during the additive manufacturing process. The resulting billets were characterized by a coarse-grained, layered structure. The alloy with an equal content of nickel and aluminum exhibited a more homogeneous internal structure compared to the alloys with ratios of 2:1 and 3:1.

The phase composition of the resulting alloys was also determined by the mass ratio of the components used in the additive manufacturing process. When the wire feed rate ratio was 1:1, a NiAl-based alloy was formed with a small content o Ni₃Al₅ and Ni₃Al phases. Increasing the nickel content alters the phase composition of the intermetallic alloy, and at a nickel-to-aluminum ratio of 3:1, the structure of the resulting billet predominantly consists of (γ + γ′) Ni₃Al and a γ-substitutional solid solution based on nickel with a small amount of aluminum.

The results of this study demonstrated the fundamental possibility of producing nickel- and aluminum-based intermetallic alloys with a specified chemical composition using EBAM technology.
