Carbides of transition metals: Properties, application and production. Review. Part 2. Chromium and zirconium carbides

Introduction

Chromium and zirconium carbides exhibit a range of distinct properties, such as refractoriness, substantial chemical resistance in diverse aggressive environments, elevated hardness, as well as impressive thermal and electrical conductivity. As a result, their utilization within the realms of industry and technology has been steadily increasing. Chromium carbide finds practical application as a constituent in wear-resistant coatings, and it also serves a role in the production of tungsten-free hard alloys and carbide steels. Another avenue of application lies in its function as an inhibiting additive in tungsten carbide hard alloys. The substantial hardness of zirconium carbide renders it suitable as an abrasive for the refinement and polishing of metal products. The primary techniques for synthesizing transition metal carbides encompass carbothermal, metal-thermal, and elemental source-based synthesis methods.

The objective of this study is to conduct an analysis of information pertaining to the properties, applications, and methodologies involved in the synthesis of chromium and zirconium carbides.

Basic properties of chromium and zirconium carbides

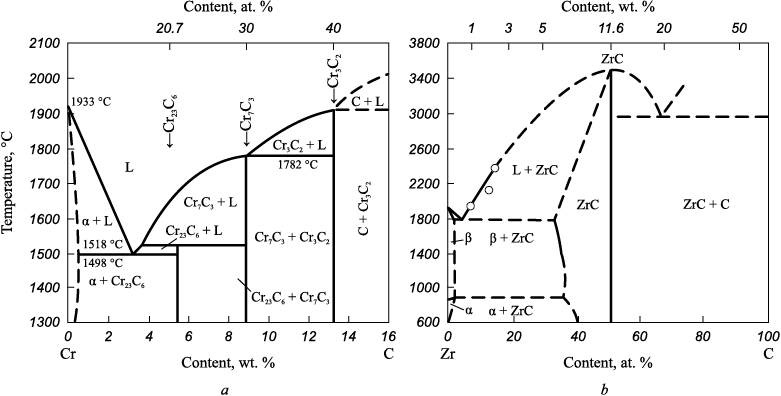

Figure depicts state diagrams for the Cr – С and Zr – С systems [1]. Within the Cr – C system, three distinct carbides (Cr₂₃C₆, Cr₇C₃  and Cr₃C₂) with fixed compositions are presented. Carbide Cr₃C₂ exhibits the highest melting temperature, approximately 1900 °C. When the carbon content within the considered system surpasses 40 at. %, carbon coexists with Cr₃C₂ carbide. For the production of powdered higher chromium carbides devoid of free carbon impurities, the synthesis temperature should theoretically remain below 1900 °C, aligning with the composition required for obtaining the Cr₃C₂ reaction product. In practice, even minor inconsistencies in the mixture (such as those caused by delamination during extended storage or vibration) can lead to the formation of a liquid phase within the system at temperatures as low as around 1500 °C. Hence, it is prudent to conduct the synthesis at temperatures not exceeding this threshold.

In the Zr – C system, a solitary compound, zirconium carbide, prevails, characterized by a wide range of homogeneity (approximately from 35 to 50 at. % C). Zirconium carbide ZrC boasts a melting point of about 3530 °C. A significant reduction in the melting point of zirconium carbide occurs as the carbon content diminishes (1800 °C at approximately 35 at. % C). Likewise, the microhardness experiences a notable decrease (with a C/Zr atomic ratio of 1.0, the value is 3100 kg/mm², and at C/Zr = 0.6, it is 1900 kg/mm²) [2]. When the carbon content surpasses 50 at. %, carbon coexists with zirconium carbide. Consequently, to produce powdered zirconium carbide devoid of free carbon, while maintaining its high melting point and microhardness in the resulting ceramic, the synthesis temperature should not surpass 3530 °C. Moreover, the mixture’s composition should align with the target reaction product, ZrC composition.

Information pertaining to certain properties of these compounds, drawn from [3], has been consolidated in Table. Both chromium and zirconium carbides exhibit robust thermodynamic stability, substantiated by their elevated heat of formation from basic elements and their isobaric-isothermal potentials. These carbides demonstrate commendably high coefficients of thermal conductivity and low resistivity, mirroring their metal-like refractory nature [4].

Examination of the chemical attributes of refractory compounds facilitates the formulation of guidelines for their application within diverse aggressive environments. The carbides in question exhibit stability when subjected to base solutions and numerous mineral acids. Additionally, they display resilience against the effects of elevated temperatures and atmospheric oxygen [5].

Areas of application of chromium and zirconium carbides

Application of chromium carbide

Chromium carbide is primarily employed as a constituent within surfacing mixtures, serving to create coatings that safeguard against intensive abrasive wear, including elevated temperatures of up to 800 °C within oxidizing environments. These coatings are applied through methods such as cladding or sputtering. The wear-resistant layer produced through cladding comprises chromium carbide set within a matrix of chromium, nickel [6], or chromium-nickel alloys [7 – 9]. Domestic industry has successfully mastered the production of the powder surfacing tape PL-AN111, which incorporates chromium carbide into the core powder composition. This tape finds utility in restoring surfaces within the contact and intermediate zones of blast furnace charging device cones that operate under forced conditions [10]. Another area of application lies in the creation of cermets, specifically tungsten-free hard alloys of KKhN grades (chromium carbide–nickel) [11]. Furthermore, promising prospects are observed for relatively cost-effective chromium carbide hard alloys and carbide steels with binders composed of iron and chromium, such as the Kh17N2 and Kh13M2 grades [12]. Notably, within the WС – Co hard alloy system, chromium carbide, along with vanadium carbide, serves as a grain growth inhibitor. Information regarding the properties and applications of hard alloys is expounded upon in [13]. The integration of inhibiting additives, such as these carbides, into hard alloys is commonly achieved through electrospark plasma sintering [14 – 16]. However, alternative techniques including microwave heating [17], hot isostatic pressing [18], and non-pressure sintering [19] can also be employed for this purpose. Both chromium and vanadium carbides similarly function as grain growth inhibitors within analogues of WС – Co cermets, exemplified by composite WC – 10 wt. % Si₃N₄ [20], as well as within cermets founded upon titanium carbonitride Ti(C, N) [21]. Porous materials crafted from chromium carbide–nickel alloys exhibit marked corrosion resistance in both acidic and alkaline solutions [22]. Furthermore, chromium carbide finds application as a catalyst in the oxidation of ammonia and carbon monoxide [23].

Application of zirconium carbide

Zirconium carbide serves as an abrasive material in pastes used for the finishing and lapping of both ferrous and non-ferrous metal components [24]. Beyond its notable hardness, an added benefit lies in its relatively elevated thermal conductivity, which mitigates the risk of burns. Carbon–carbon composites (С – С) display promise as materials suited for high-temperature applications. In this context, particularly when exposed to high-speed airflow, effective protection of the (С – С) composite against high-temperature ablation is achieved through a coating of zirconium carbide. This is due to its resistant to thermal shocks [25; 26].

Chromium and zirconium carbide manufacturing methods

The properties of refractory compounds are contingent on factors like impurity content, dispersity, and stoichiometric balance. Zirconium carbide’s microhardness [2] varies with its composition. Therefore, addressing specific challenges associated with refractory compounds necessitates the meticulous selection of appropriate preparation methods and the determination of acceptable impurity levels within initial constituents. This reality has led to the proliferation of diverse synthesis techniques, which are classified in [27].

The most prevalent methods for carbide synthesis encompass:

– synthesis from elemental constituents

– metallothermal (often magnesiothermal) reduction of oxides in the presence of carbon

– carbothermal reduction of oxides

Synthesis reactions of refractory compounds (carbides) from elemental constituents are invariably exothermal. If the heat release reaches a threshold of 2400 kJ/kg of the mixture, the reaction initiates spontaneously. Should the heat release be inadequate, measures such as blend preheating or the utilization of mechanical activation of its components become necessary. Conversely, excessive heat release calls for the incorporation of inert additives into the mixture. These procedures are referred to as SHS processes (self-propagating high-temperature synthesis). Under optimal conditions, nearly complete conversion of the initial substances into the final products transpires, typically yielding an unreacted substance content of around 1 % by mass. Since the synthesis process is devoid of contamination, the product’s purity in terms of impurities is roughly equivalent to that of the reagents [28]. Nevertheless, such processes are encumbered by the high cost of elemental powders.

During the metallothermal synthesis of carbides, it becomes imperative to subject the reaction products to treatment (typically with an acid) in order to eliminate compounds, notably oxides, stemming from the reducing metal – commonly magnesium. Owing to magnesium’s comparably low boiling point (1090 °C) [29] and the substantial heat liberation inherent in magnesiothermal processes, the emission of hot blend and reaction byproducts is plausible. To preempt such scenarios, these processes are conducted within sealed reactors operating under elevated argon pressure. A notable attribute of magnesiothermal and calciumthermal reduction processes is the emergence of refractory compound particles enshrouded by layers of magnesium or calcium oxides characterized by elevated melting points [30]. Consequently, the resultant products of the reaction exhibit high dispersion. Moreover, it’s essential to factor in the high cost and toxic nature of powdered magnesium [31].

It is widely considered [4; 32] that the carbothermal synthesis of carbides stands as the most promising approach for the large-scale production of these compounds. In the carbothermal method for obtaining transition metal carbides, the reagents utilized are typically non-toxic. The processes of carbide formation occur within the solid phase. Given the endothermic nature of carbide formation, these processes are conducted at elevated temperatures. To optimize synthesis parameters, the carbon monoxide (CO) pressure is reduced by performing the process in an inert gas environment or under vacuum conditions. Carbothermal reduction can also be accomplished via the sol–gel method. A distinctive trait of this approach lies in its relatively lower synthesis temperatures, which arise from the close contact between reagents within ultra-dispersed blends [3]. The resultant products are in a nanodispersed state. Nonetheless, drawbacks of the sol–gel method encompass the use of toxic reagents in several syntheses, the intricacy (including duration and multi-stage nature) of batch preparation processes, and the occurrence of incomplete reaction conversion in certain cases.

Higher chromium carbide manufacturing method

Synthesis through chromium and carbon

For chromium carbide Cr₃C₂, the heat of formation aligns closely with its enthalpy at relatively low temperatures (approximately 1140 K) [3]. As a result, initiating the SHS process for a mixture of chromium and carbon at ambient temperature is impractical. Instead, this synthesis can be realized through preheating the mixture. In the case at hand, mixture’s mechanical activation typically preceded the SHS process.

Mechanical activation alone doesn’t inherently lead to the synthesis of chromium carbides. Research conducted in [33] demonstrated that fullerenes exhibit greater reactivity compared to graphite. While mechanical activation aids in reducing synthesis parameters (for instance, the process temperature for Cr₃C₂ carbide synthesis can be lowered by around 200 °C) [34], incomplete carbide formation reactions were noted in [35; 36]. Nevertheless, employing high-energy mechanical activation enables the production of compact Cr₃C₂ carbide products [37]. It’s worth noting that mechanical activation is a time-consuming (often spanning several hours) and energy-intensive procedure.

An alternative approach involves elevating the thermality of the process. As explored in [38], the synthesis of chromium carbides can occur when a portion of carbon black is replaced with polytetrafluoroethylene (–CF₂ = CF₂–)_n. At temperatures ranging from 900 to 1000 K, this compound decomposes, yielding graphite and fluorine. The latter substance interacts with chromium, forming chromium fluorides. This reaction releases substantial heat, consequently triggering an SHS process for Cr₇C₃ carbides or Cr₃C₂ carbides with particle sizes measuring 0.5 – 2.0 µm. It is imperative to purify the reaction products from chromium fluoride CrF₂. Given the involvement of fluorine, the reactor necessitates sealing.

Carbothermal reduction

The carbothermal reduction of chromium oxide is conducted through the comprehensive reaction:

Vapor deposition

In [66], the production of ultrafine chromium carbonitride powder of Cr₃(C_0.8N_0.2)₂, through plasma-chemical synthesis was explored. This process involved reducing chromium oxide using a nitrogen-hydrogen plasma flow containing propane–butane. However, the exhaust gases generated during this process contain hazardous hydrogen cyanide. The resulting powder had an average particle size of 35 nm, with the primary substance content ranging from 90.23 to 94.60 wt. %. It is worth noting that when stored in air, the chromium carbonitride powders exhibited significant oxygen and moisture adsorption. In comparison to coarser-grained chromium carbide powders [67], the thermal oxidative stability of this compound is relatively lower: oxidation initiates at approximately 280 °C and is nearly completed at 580 °C. A similar process was examined in reference [68]. Experimental results indicated that the interaction between chromium oxide and hydrocarbons within a plasma flow did not yield higher single-phase carbides. Another study in [69] described attempts to produce chromium carbonitride in a nitrogen plasma flow through the interaction of chromium metal powder and natural gas containing 94 vol. % methane. The resulting synthesis products contained 91.8 – 93.5 wt. % of the target compound, with particle sizes ranging from 150 to 600 nm.

In many of the referenced works ([33 – 35; 38; 39; 41 – 43; 45 – 47; 49; 51; 52; 54 – 56; 60; 62 – 65; 68] which account for approximately 83 % of the total cited references, information about the content of impurities in the final product was not provided.

Zirconium carbide manufacturing method

Synthesis through zirconium and carbon

In [70], zirconium and acetylene carbon black powders employed as initial materials. The blend, with a stoichiometric composition, underwent “dry” stirring for 2 – 3 h. Subsequently, it was compacted into briquettes to expedite diffusion processes. The synthesis occurred under a pressure of 1.2·10\(^ - \)⁴ mm Hg (0.2 Pa). At a temperature of 1800 °C and a duration of one hour, zirconium carbide (ZrC) was successfully produced. The presence of impurities in the final product amounted to 0.6 wt. %. However, no information regarding particle dispersion was provided.

Metallothermal reduction

In [71 – 73], magnesiothermal synthesis was conducted according to the reaction

To mitigate the process’s thermal intensity, an inert additive, such as sodium fluoride, was utilized [71], or blends were formulated with an excess of magnesium beyond stoichiometric proportions [72]. In [73], zirconium carbide was obtained after subjecting the materials to 30 h of mechanical activation. An alternative means of initiating magnesiothermal reduction involves partially oxidizing magnesium through its interaction with water [74]. This procedure leads to a high-pressure environment due to the evolution of hydrogen (pressure reaching 49.15 MPa). The resultant zirconium carbide nanoparticles were approximately 500 nm in size.

In the examined process, sodium [75] can also serve as a reducing metal. The process in question involved the reagents zirconium chloride ZrCl4 , sodium and toluene. By heating the solid residue produced after the excess toluene had evaporated, zirconium carbide was synthesized at a temperature of 700 °C over the course of one hour in an argon environment. It’s important to note that sodium is highly susceptible to oxidation in air [40], which posed challenges during the blend preparation stage.

Carbothermal reduction

The comprehensive reaction equation is as follows

Researchers [76] posit that the reduction of ZrO₂ oxide, which is thermodynamically robust, takes place through carbon rather than the relatively thermodynamically weaker reducing agent (CO). The interaction likely involves the transfer of oxide vapors (ZrO₂, ZrO [50]) to the oxide’s surface, followed by chemical interaction and desorption of the gaseous product (CO) resulting from the reaction. Conversely, researchers [44] lean towards the notion that CO drives the reduction of zirconium oxide, with carbon’s role limited to regeneration. However, this viewpoint lacks substantial experimental support. In [77], active carbon, carbon black, and graphite powder served as carbon materials. These reagents were proportioned stoichiometrically to facilitate reaction (8). Monitoring of the reduction process was based on the quantity of released CO oxide. At temperatures of 1800 and 2000 °C, the conversion degree approached 100 %, and the oxygen content in the reaction products remained below 1 wt. % (except for instances involving thermal treatment with graphite). Carbothermal regeneration processes of titanium and zirconium oxides share certain similarities, given that zirconium carbide forms from oxycarbide ZrO_xC_y. The particle size of the obtained material predominantly fell within the range of 2.4 – 7.5 μm, accounting for 90 wt. %. Reference [48] also utilized active carbon, carbon black, and graphite powder as carbon materials. The blend was prepared in stoichiometric proportion for reaction (8) and subsequently heated in an inert gas flow (helium). The oxycarbide phase ZrO_xC_y emerged at 1450 °C, with the ZrO₂ phase already absent in samples synthesized at 2000 °C. Oxygen content in these samples remained around 0.6 wt. %. Notably, at synthesis temperatures exceeding 1450 °C, the gas phase primarily comprised CO oxide. This serves as unequivocal evidence against the feasibility of reducing zirconium oxide ZrO₂ using carbon monoxide CO, as such a reaction would yield a significant quantity of oxide CO₂ in the gas phase. However, particle size information is not provided. From a thermodynamic standpoint, reactions [78] are infeasible

In [78], samples composed of compressed zirconium oxide ZrO₂ and graphite were subjected to heating within a helium environment. The formation of the ZrC phase took place at 1800 °C. The primary mechanism behind zirconium carbide formation predominantly involves carbon diffusion into zirconium oxide ZrO₂, as opposed to the vapor transfer of ZrO₂ and ZrO oxides to the carbon surface, followed by chemical interaction).

An examination of the aforementioned published data yields the following insights. Challenging is the alignment with the viewpoint of the authors in [44] concerning the reduction of zirconium dioxide with carbon monoxide. More recent experimental findings [79] suggest that the reduction process more likely transpires through the transfer of zirconium oxide vapors to the carbon material’s surface, accompanied by a chemical reaction and subsequent removal of the resulting gaseous product (CO). While the possibility of solid-phase interaction involving carbon diffusion into zirconium dioxide is not excluded, reduction leads to the formation of zirconium oxycarbide ZrO_xC_y, with its oxygen content diminishing over time.

The process of generating zirconium carbide via the interaction between zirconium dioxide and carbon was outlined in [79 – 81].

A thermodynamic analysis of the process for obtaining zirconium carbide and its synthesis through heating a compressed mixture with an argon-hydrogen plasma was conducted in [79]. When employing a reactant ratio (ZrO₂ + C) in accordance with the stoichiometry of Eq. (5), the degree of transformation of zirconium dioxide into carbide approached unity within the temperature range of 1900 – 3800 K. In experiments involving a stoichiometric reactant ratio and a thermal treatment time of three minutes, the resulting product was single-phase (ZrC) with a carbon content of 4.14 wt. % and an oxygen content of 0.35 wt. %. However, information regarding the dispersity of zirconium carbide was not provided. Zirconium carbide was synthesized in [80] using zirconium dioxide and carbon black. The mixture of calcined components was ball-milled for eight hours and subsequently heated in a hydrogen environment. Optimal outcomes were achieved at a temperature of 2200 °C and a holding time of 60 min. The content of bonded carbon amounted to 11.30 wt. %, while the calculated content was 11.65 wt. %. Unfortunately, no information concerning powder dispersity was provided. In [81], the reagents comprised zirconium dioxide and graphite powders, with the blend’s composition aligning with the stoichiometry of Eq. (8). Consequently, the reduction of zirconium dioxide to carbide does not involve carbon oxide (CO). The blend underwent high-energy grinding in a planetary mill for 20 h, followed by heat treatment at temperatures ranging from 1300 to 1600 °C for two hours under vacuum conditions. Full transformation of the reactants was achieved at 1400 °C. This indicates that the utilization of high-energy grinding enables a reduction in the carbide formation temperature by 400 °C. No reports of reagent contamination with grinding media and lining materials were made. The resulting powdered material consisted of agglomerates measuring approximately 7 μm in size, comprised of particles around 200 nm in size.

The synthesis of zirconium carbide utilizing nanofibrous carbon, characterized by its low impurity content (around 1 wt. %) and substantial specific surface area (approximately 150 m²/g) [59], was explored in references [82; 83]. The blend was formulated in accordance with the stoichiometry of Eq. (5). It was observed that the use of such material led to a reduction in the process temperature by approximately 200 °C, ultimately yielding a highly dispersed single-phase product (ZrC) with an average particle size of approximately 15 μm. The impurity content remained relatively low, approximately 2 wt. %.

The series of publications provides comprehensive insights into the zirconium carbide production process via the carbothermal method from ultrafine blends. Zirconium butoxide Zr(OC₄H₉)₄ [84 – 86], zirconium n-propoxide Zr(OC₃H₇)₄ [87 – 89], zirconium tetrachloride ZrCl₄ [90 – 92], zirconium nitrate Zr(NO₃)₄∙5H₂O [93], and zirconium oxychloride ZrOCl₂∙8H₂O were utilized as zirconia sources [94 – 96]. The carbon sources encompassed propanol C₃H₇OH [95], butanol C₄H₉OH [84; 85], furfuryl alcohol С₅Н₅ООН [92], acetylacetone СН₃–СО–СН₂–СО–СН₃ [89; 96], sucrose [87; 95], phenolic resin [86; 88; 91], salicylic acid С₆Н₄–ОН–СООН [89], triethylamine C₆H₁₅N [89], divinylbenzene C₆H₄(C₂H₅)₂ [90], glucose [94; 96], chitosan [93], 1,4-butanediol С₄Н₁₀О₂ [96]. The reagents containing zirconium and carbon were stirred for 1 – 3 h. Subsequently, the solvent was removed either through evaporation or by subjecting the mixture to vacuum conditions. The resulting dry residue (ultrafine mixture) underwent heat treatment within an inert gaseous medium or under vacuum at conditions at temperatures ranging from 1250 to 1600 °C.

It is intriguing to note that in nearly all the aforementioned publications, the authors carried out calculations based on reaction (8) during blend preparation. Consequently, they hold the belief that the reduction of zirconium carbide from the oxide takes place through solid carbon, rather than involving carbon monoxide СО.

Vapor deposition

Zirconium carbonitride ZrC_0.90N_0.06 was synthesized within a nitrogen-hydrogen plasma flow through the reduction of zirconium oxide ZrO₂ with propane-butane [66]. The content of impurities (ZrO₂ and free carbon, C_free) within the resulting reaction products ranged from 16.88 to 19.95 wt. %. One potential explanation for such a high impurity content lies in the considerable thermodynamic stability exhibited by zirconium oxide [11]. The average particle size of the synthesized material measured around 50 nm. It’s essential to highlight that the exhaust gases produced during this process contain toxic hydrogen cyanide. Additionally, observations indicated that the zirconium carbonitride powders, when exposed to air, exhibited a pronounced propensity for oxygen and moisture adsorption.

Synthesis through salt melt electrolysis

In [97], zirconium carbide powder with particle size ranging from 60 to 100 nm was successfully produced through electrolysis in a calcium chloride melt at a temperature of 1123 K (850 °C). A compressed mixture of ZrO₂/C was utilized as the anode, and the process ran for a duration of seven hours.

In several of the cited publications ([73 – 75; 78; 81; 84; 85; 89 – 92; 95 – 97], amounting to approximately 65 % of the total references), no information regarding the content of impurities in the final product was provided.

Conclusions

This text discusses refractory oxygen-free metal-like compounds, specifically chromium and zirconium carbides, highlighting their properties and applications. Chromium and zirconium carbides are characterized by high thermal and electrical conductivity, notable hardness, and chemical inertness. They find application across various engineering fields, such as abrasives, wear-resistant ceramics, and components in surfacing materials. Chromium carbide is utilized in tungsten-free hard alloys and carbide steels. Zirconium carbide shows promise as an inhibitory additive in hard alloy production and can function as a catalyst in organic synthesis. The methods for preparing these compounds are detailed and analyzed, outlining their distinctive features.

The majority of research on the synthesis of chromium and zirconium carbides focuses on their production from simple substances through carbothermal and metallothermal processes. Limited information exists on the preparation of these compounds via vapor-gas deposition. A noteworthy observation is that many cited publications lack details about the purity of the reaction products, often relying solely on X-ray phase analysis to gauge the completeness of the carbide formation processes. A plausible mechanism for the formation of these compounds involves the transfer of oxide vapors to the surface of carbon material particles, followed by subsequent chemical interaction. Additionally, it’s conceivable that carbides may form through direct contact between solid reagents.
